.Camera Displays
The following are displayed in the LCD monitor and sub LCD monitor during shooting.
For illustrative purposes, displays are shown with all indicators lit.

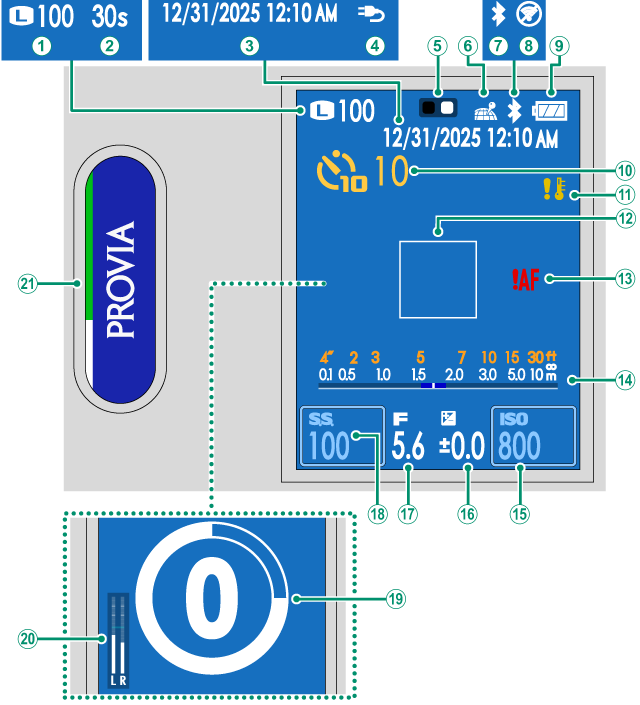

The LCD Monitor/The Sub LCD Monitor
AImage size/ number of available frames *
BElapsed recording time
CDate and time
DPower supply
E2in1 guide
FLocation data download status
GBluetooth ON/OFF
HAirplane mode
IBattery level
JxSelf-timer indicator
KTemperature warning
LFocus frame
MFocus warning
NDistance indicator
OSensitivity
PExposure compensation
QAperture
RShutter speed
SFSelf-timer indicator
TRecording level
UFilm simulation/ filter settings
* Shows “9999” if there is space for over 9999 frames.
Eye Sensor
When you bring your eye close to the viewfinder, the eye sensor automatically turns off the LCD. Moving your eye away from the viewfinder turns on the LCD. Use DSCREEN SET-UP > EYE SENSOR to turn the eye sensor function on and off.
The eye sensor may respond to objects other than your eye or to light shining directly on the sensor.
Adjusting Display Brightness
The display may become difficult to see when used outdoors due to light sources such as sunlight. Adjust the LCD monitor brightness and saturation with LCD BRIGHTNESS and LCD COLOR in the DSCREEN SET-UP menu.
Virtual Horizon
Check whether the camera is level. The display type can be chosen using DSCREEN SET-UP > ELECTRONIC LEVEL SETTING. Use the virtual horizon to level the camera when mounting it on a tripod or the like.
- OFF: The virtual horizon is not displayed.
- ON: A white line shows the amount the camera is tilted left or right. The line turns green when the camera is level.
