Assign a role to each function button or touch-function gesture for quick access to the selected feature.

---

• The Function Buttons
• The Control Lever
• Touch-Function Gestures
• Lens Function Buttons

The Function Buttons

Assign a role to the function buttons for quick access to the selected feature.

Function Button Defaults

The default assignments are:

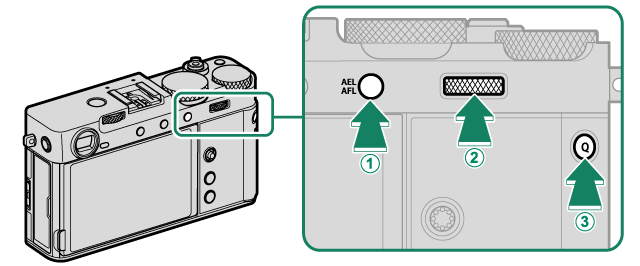

Back-of-Camera Function Buttons

Function buttons	Default
A [AEL/AFL] button	[AE/AF LOCK]
B Center of rear command dial	[FOCUS CHECK]
C [Q] (quick menu) button	[QUICK MENU]

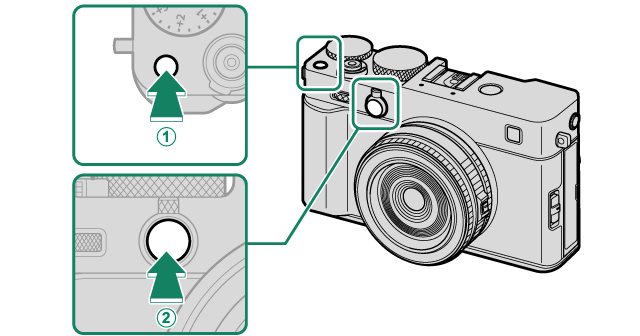

Front-of-Camera Function Buttons

Function buttons	Default
A [Fn1] button	[FACE DETECTION ON/OFF]
B [Fn2] button	[VIEW MODE SETTING]

Assigning Roles to the Function Buttons

The roles played by the function buttons can be selected using the D[BUTTON/DIAL SETTING] > [FUNCTION (Fn) SETTING] option in the setup menu.

[AF-ON]

Controls to which [AF-ON] is assigned can be used for autofocus.

[MODELING FLASH]

If [MODELING FLASH] is selected when a compatible shoe-mounted flash unit is attached, you can press the control to test-fire the flash and check for shadows and the like (modeling flash).

[TTL-LOCK]

If [TTL-LOCK] is selected, you can press the control to lock flash output according to the option selected for F[FLASH SETTING] > [TTL-LOCK MODE] (a[TTL-LOCK MODE]).

[RECALL CUSTOM 1 SETTING]

Controls to which [RECALL CUSTOM 1 SETTING] has been assigned can be pressed to temporarily recall the settings saved to [C1] ([CUSTOM 1]). Pressing the button a second time restores the previous settings.

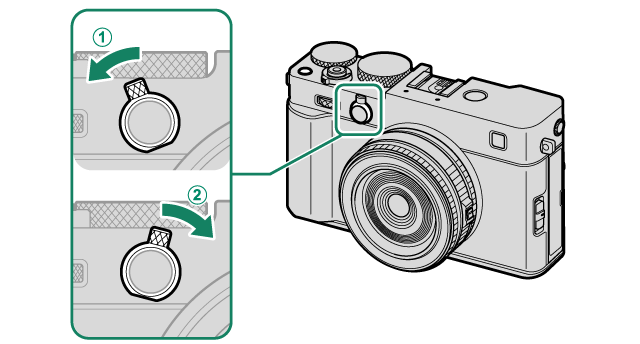

The Control Lever

Pull the control lever left or right or pull and hold it to quickly access the selected features.

Control Lever Defaults

The default assignments are:

Control lever	Default
APull (toward the grip)	[SURROUND VIEW]
APull and hold (toward the grip)	[ASPECT RATIO]
BPull (toward the lens)	[DIGITAL TELE-CONV.]
BPull and hold (toward the lens)	[FS RECIPE]

Assigning Roles to the Control Lever

The roles played by the control lever can be selected using the D[BUTTON/DIAL SETTING] > [FUNCTION (Fn) SETTING] option in the setup menu.

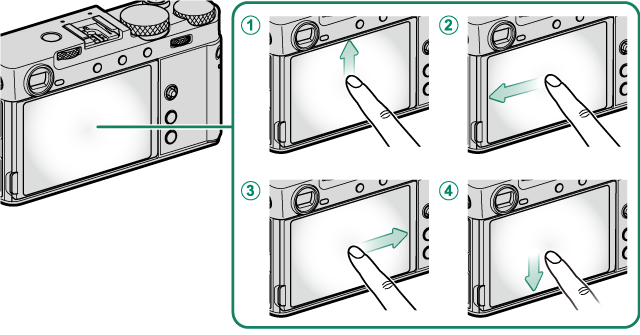

Touch-Function Gestures

Assign roles to touch-function gestures ([T-Fn1], [T-Fn2], [T-Fn3], or [T-Fn4]) for quick access to selected features.

Touch-Function Gesture Defaults

The default assignments for the different gestures are:

Touch-Function Gestures	Default
A [T-Fn1] (flick up)	[HISTOGRAM]
B [T-Fn2] (flick left)	[FILM SIMULATION]
C [T-Fn3] (flick right)	[WHITE BALANCE]
D [T-Fn4] (flick down)	[ELECTRONIC LEVEL SWITCH]

Assigning Roles to Touch-Function Gestures

The roles played by touch-function gestures can be selected using the D[BUTTON/DIAL SETTING] > [FUNCTION (Fn) SETTING] option in the setup menu.

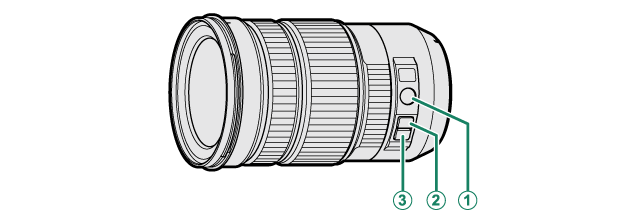

Lens Function Buttons

Choose the roles played by the function buttons on the lens (where applicable).

Lens Function Button Defaults

The default assignments are:

Lens function button	Default
AZ/F	[ZOOM/FOCUS CONTROL RING]
B[L-Fn1] (rocker zoom button pressed up)	[CONSTANT SPEED ZOOM (T)]
C[L-Fn2] (rocker zoom button pressed down)	[CONSTANT SPEED ZOOM (W)]

Assigning Roles to the Lens Function Buttons

The roles played by the lens function buttons can be selected using the D[BUTTON/DIAL SETTING] > [POWER ZOOM LENS FUNCTION (Fn) SETTING] option in the setup menu.
