.The Playback Display
The following information is displayed on the side monitors and LCD monitor during playback.
For illustrative purposes, displays are shown with all indicators lit.
Side Monitors

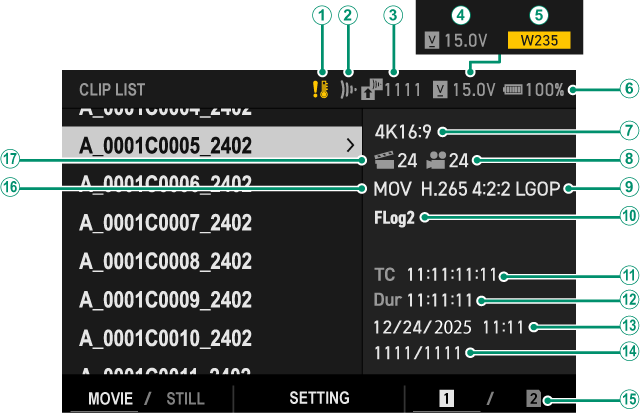

Display When Selecting a File to Play
ATemperature warning
BFrame.io connection status
CFrame.io upload progress
DExternal power source
EW235 battery mode
FNP-W235 battery level
GFrame size
HRecording frame rate
ICodec
JFS/F-Log/HLG
KTime code
LRecording time
MRecording date and time
NFile number/ total number of files
OMedia
PFile format
QProject frame rate

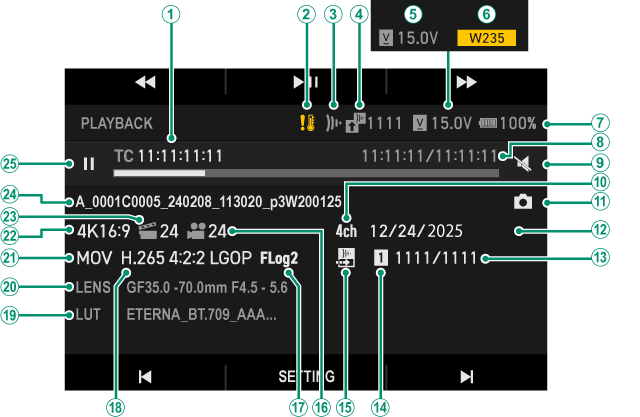

Display During File Playback
ATime code
BTemperature warning
CFrame.io connection status
DFrame.io upload progress
EExternal power source
FW235 battery mode
GNP-W235 battery level
HPlayback time/ recording time
IMute
JFour-channel (quadrophonic) audio recording
KGrab
LRecording date and time
MFile number/ total number of files
NCard slot
OFrame.io file transfer order
PRecording frame rate
QFS/F-Log/HLG
RCodec
SLUT file
TLens information
UFile format
VFrame size
WProject frame rate
XClip name
YPlayback status
LCD Monitor

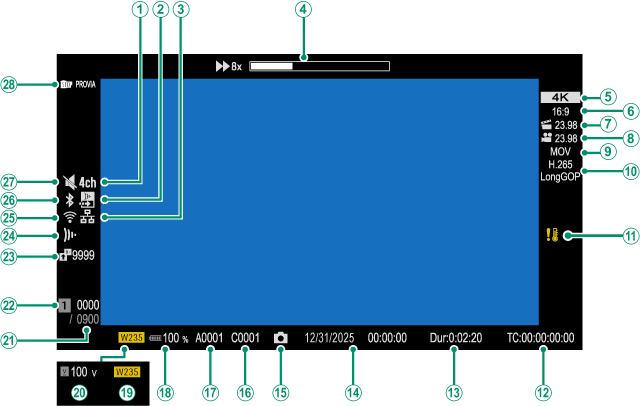

Display During Movie Playback
AFour-channel (quadrophonic) audio recording
BFrame.io file transfer order
CEthernet connection
DPlayback status
EResolution
FAspect ratio
GRecording frame rate
HProject frame rate
IFile format
JCodec
KTemperature warning
LTime code
MRecording time
NRecording date and time
OGrab
PClip No.
QReel No.
RNP-W235 battery level
SW235 battery mode
TExternal power source
UFile number/ total number of files
VCard slot
WFrame.io upload progress
XFrame.io connection status
YWireless connection
ZBluetooth ON/OFF
aMute
bLOOK media FS/F-Log/HLG

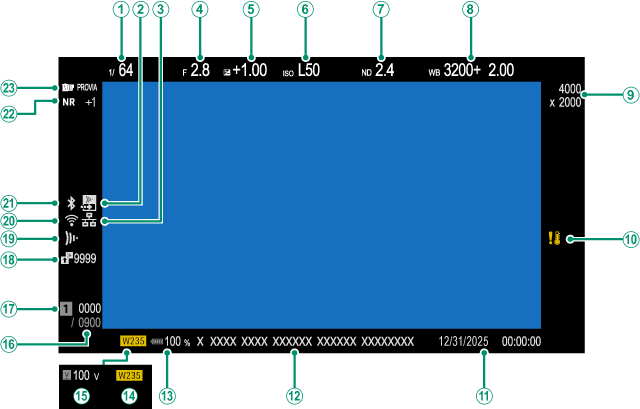

Display During Still Image Playback
AShutter speed
BFrame.io file transfer order
CEthernet connection
DAperture
EExposure compensation
FSensitivity
GND (Neutral Density) filter indicator
HWhite balance
IImage size
JTemperature warning
KRecording date and time
LFile name
MNP-W235 battery level
NW235 battery mode
OExternal power source
PFile number/ total number of files
QCard slot
RFrame.io upload progress
SFrame.io connection status
TWireless connection
UBluetooth ON/OFF
VNoise reduction
WFilm simulation/F-Log/HLG recording
Switching Information Display
Press [DISP] to enable or disable the information display.
