.Camera Displays
The following information is displayed on the LCD monitor and side monitors during shooting.
For illustrative purposes, displays are shown with all indicators lit.

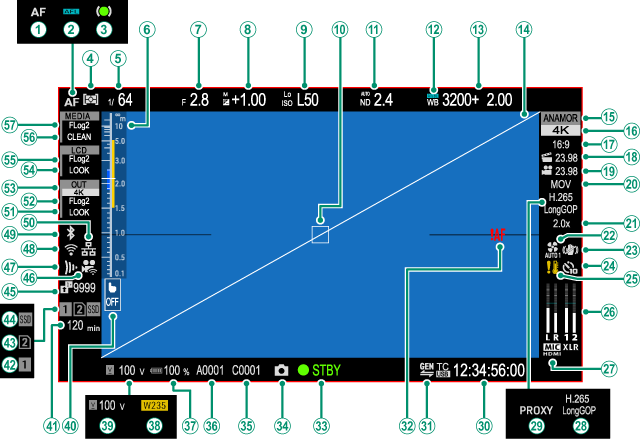

LCD Monitor Display
AFocus mode
BAF lock
CFocus indicator
DMetering
EShutter speed
FDistance indicator
GAperture
HExposure compensation
ISensitivity
JFocus area
KND (Neutral Density) filter indicator
LAWB lock
MWhite balance
NVirtual horizon
OImage format
PResolution
QAspect ratio
RProject frame rate
SRecording frame rate
TFile format
UCrop factor
VCooling fan settings
WIS mode
XSelf-timer indicator
YTemperature warning
ZRecording level
aXLR recording level
bCodec
cProxy (only when rec ProRes)
dTime code
eGenlock
fFocus warning
gCamera status ● STBY/REC
hGrab
iClip No.
jReel No.
kNP-W235 battery level
lW235 battery mode
mExternal power source
nTouch AF button
oMedia recording time
pRecording media CF
qRecording media SD
rRecording media SSD
sFrame.io upload progress
tRemote recording function connection status
uFrame.io connection status
vWireless connection
wBluetooth ON/OFF
xEthernet connection
yLOOK SDI/HDMI LOOK/CLEAN status
zLOOK SDI/HDMI FS/F-Log/HLG/RAW
0LOOK SDI/HDMI output setting
1LOOK LCD LOOK/CLEAN status
2LOOK LCD FS/F-Log/HLG
3LOOK media LOOK/CLEAN status
4LOOK media FS/F-Log/HLG

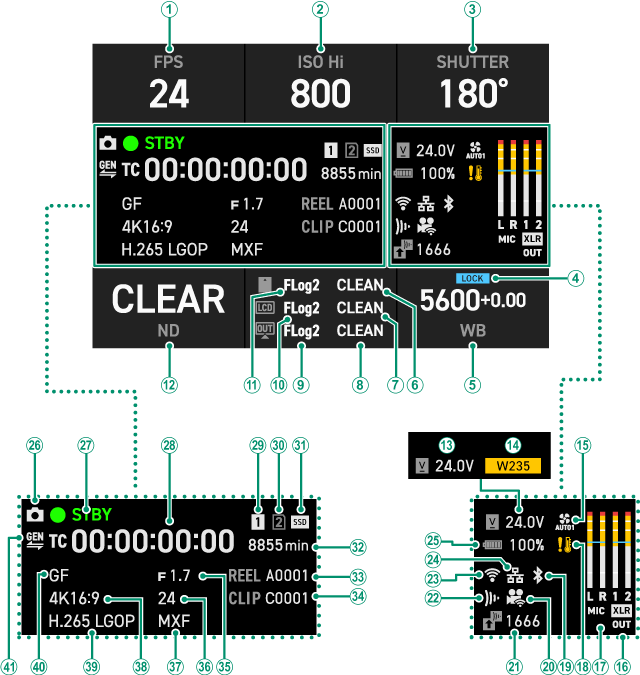

Side Monitor Display
ARecording frame rate
BSensitivity
CShutter speed
DAWB lock
EWhite balance
FLOOK media LOOK/CLEAN status
GLOOK LCD LOOK/CLEAN status
HLOOK SDI/HDMI LOOK/CLEAN status
ILOOK SDI/HDMI FS/F-Log/HLG/RAW
JLOOK LCD FS/F-Log/HLG
KLOOK media FS/F-Log/HLG
LND (Neutral Density) filter indicator
MExternal power source
NW235 battery mode
OCooling fan settings
PXLR recording level
QRecording level
RTemperature warning
SBluetooth ON/OFF
TRemote recording function connection status
UFrame.io upload progress
VFrame.io connection status
WWireless connection
XEthernet connection
YNP-W235 battery level
ZGrab
aCamera status ● STBY/REC
bTime code
cRecording media CF
dRecording media SD
eRecording media SSD
fMedia recording time
gReel No.
hClip No.
iAperture
jProject frame rate
kFile format
lResolution
mMedia rec setting
nImage format
oGenlock
